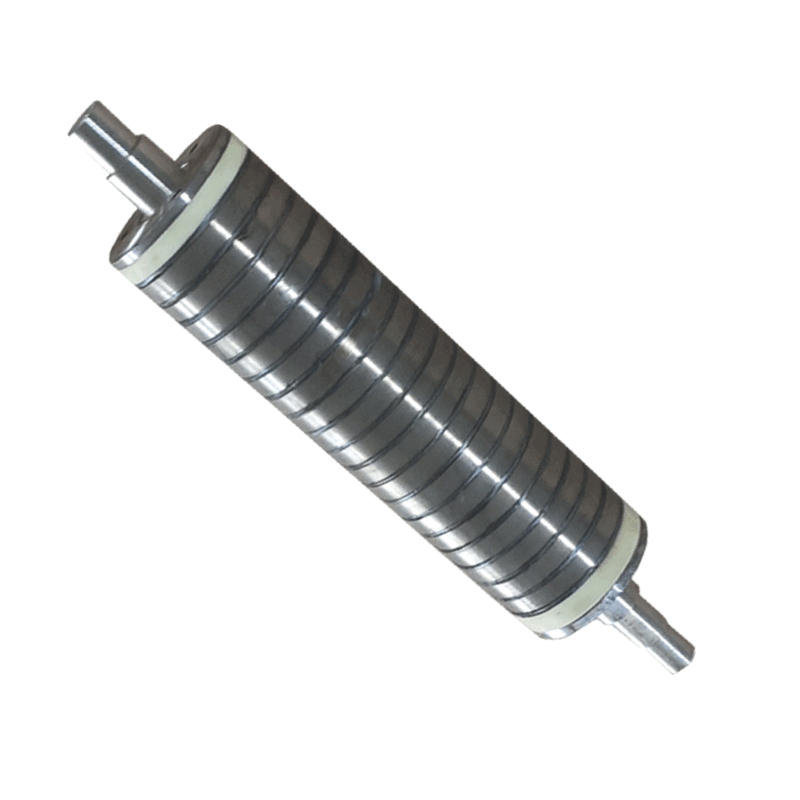

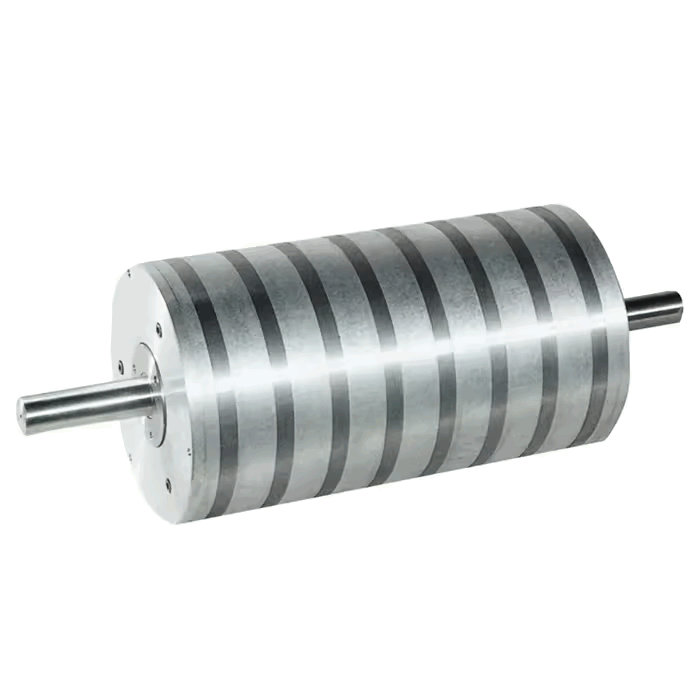

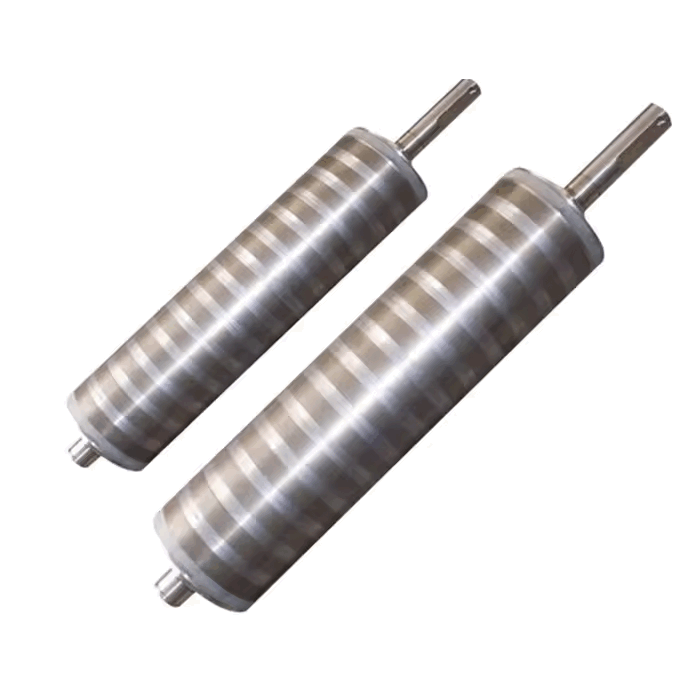

Neodymium Industrial Magnetic Roller

Neodymium Industrial Magnetic Roller

Engineered with N52-grade neodymium magnets, our industrial magnetic roller delivers 15,000+ gauss strength for precision ferrous separation in harsh environments. Its self-cleaning ceramic surface ensures continuous operation in food, mining, and recycling applications. Compact, corrosion-resistant, and RoHS certified – the ultimate solution for contaminant-free bulk materials.

 Product Details

Advantages:

1. Improves product purity

2. Automatic separation of magnetic and non-magnetic material

3. Prevents damage to expensive downstream machinery

4. Easy installation

5. High surface gauss

 Application

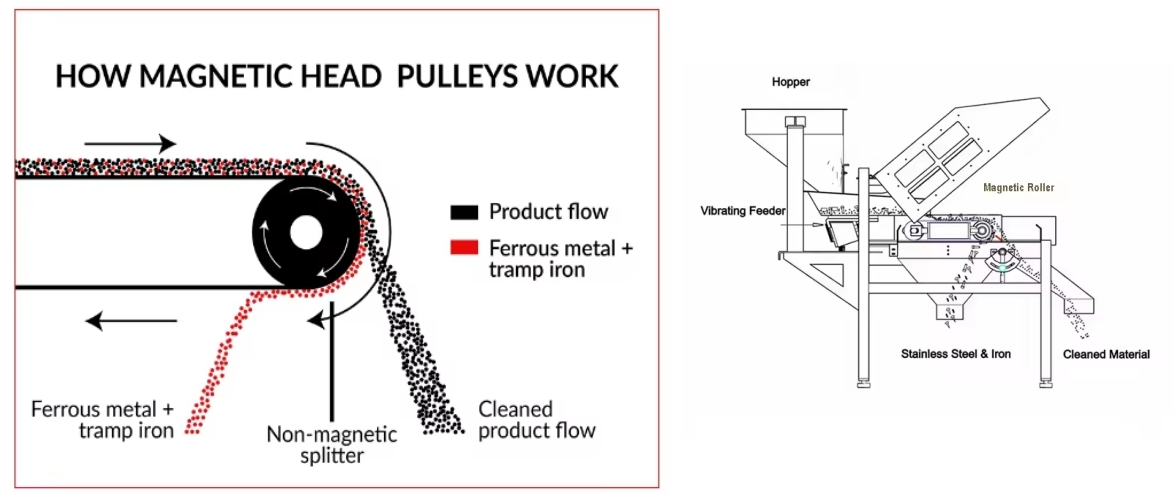

As the product stream reaches the conveyor discharge point, ferrous metal is attracted to the roller's magnetic field and held to the belt. As the belt moves around the roller, the non-magnetic material is discharged in a normal trajectory; however, the ferrous metal is still held to the belt. When the belt passes out of the magnetic field, the magnetic material drops off into a separate chute or bin to the rest of the product. A non-magnetic splitter may be installed to separate the two discharges. Ferrous metals commonly extracted from the product stream include nails, nuts, bolts, wire, cans, screws, tools, and so on.

 Customization

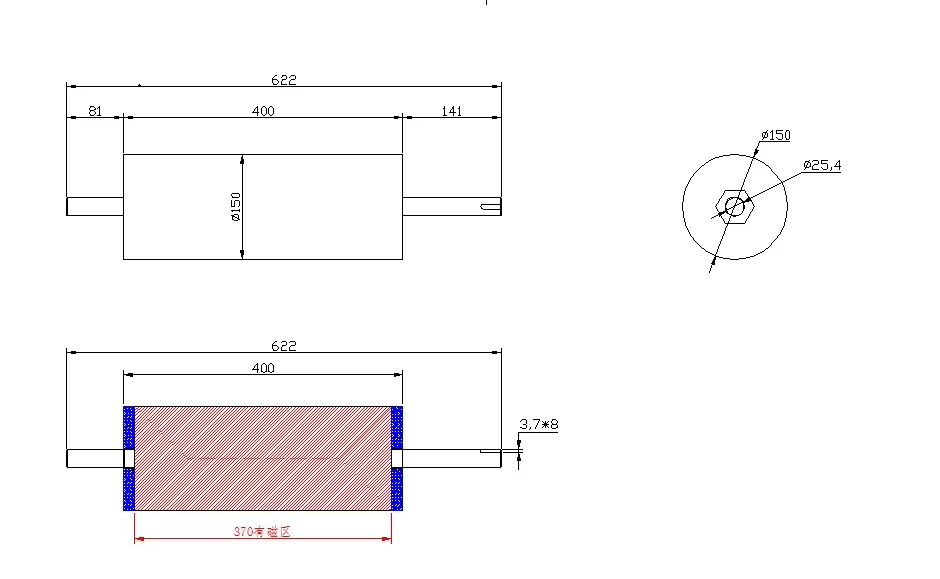

We are able to custom-made the size and the surface gauss according to your device.
